Performance & Characteristics

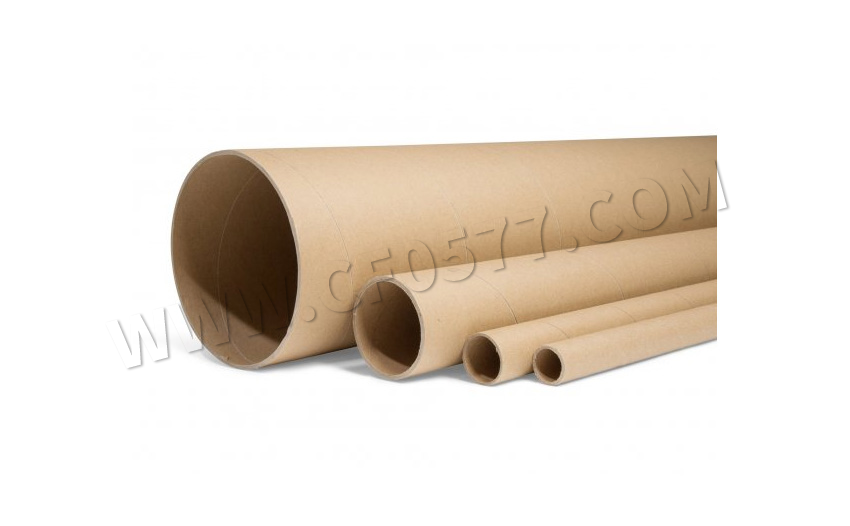

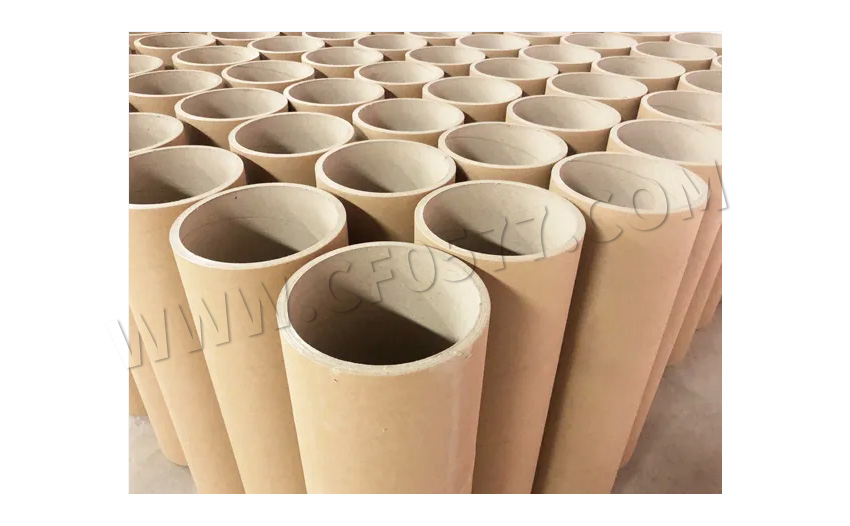

This Machine is suitable for Large & Thick cores like Stretch Film cores and Strong Industrial paper tubes & cores etc.
1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

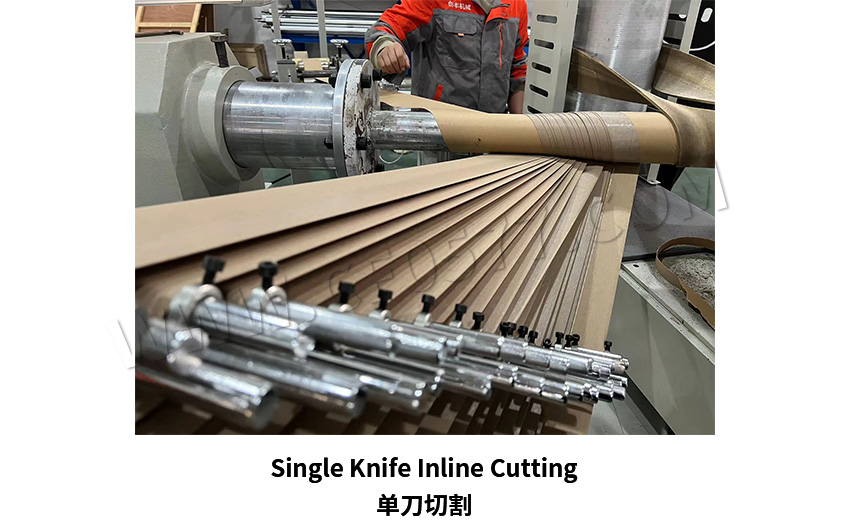

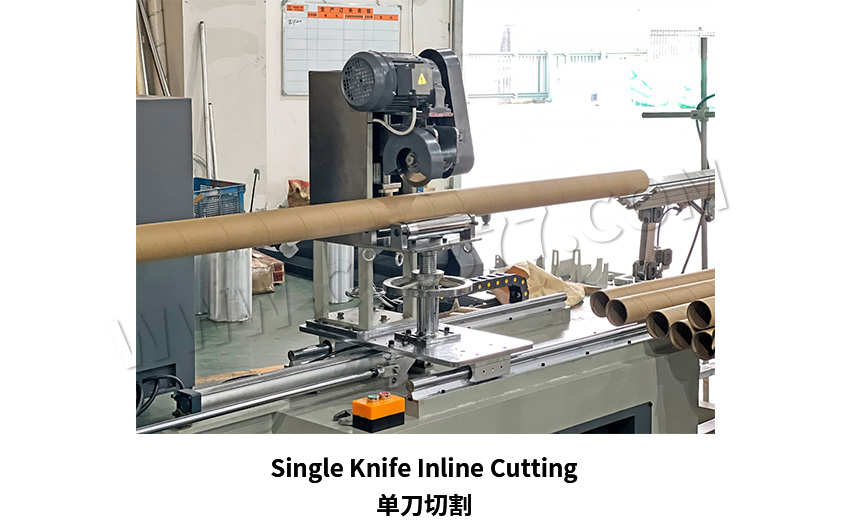

2. Single high speed steel blade online cutting system with cutting range 1000-5000mm.
3. All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized.
Technical Parameter
Paper Layer | 3-24 layers |
Inner Diameter | 50-250mm |
Wall Thickness | 1-15mm |
Online Cutting Length | 1000-5000mm |

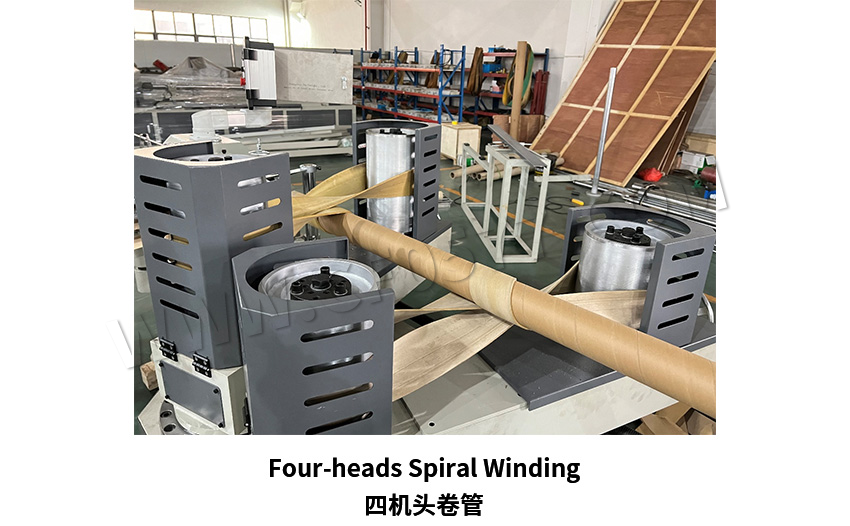

Winding Nose | Four heads double belts |
Working Speed | 1-20 meters/min |
Speed Regulation | By Inverter |
Cutting System | Single high speed steel blade |
Gluing Way | Double sides |
Length Fixing | By Infrared |
Working air pressure | 0.6 Mpa |
Operator | 2-3 persons |
Power supply | 380v/ 3Phase/50Hz |
Paper Reel Stand | 24 Layers Integral Type |
Glue Unit | 24 Layers Spraying Type |
Inner Paper Stand | 1 Set |
Tube Unloading Shelf | 1 Set |
Mandrel Shaft | 2 Pieces |
Belt | 4 Pieces |
Extra Blades | 3 Pieces |
Tool | 1 Set |
Measurement | 4500*1950*1900mm |
Weight | 4200kgs |
